| MOQ: | 1トン |
| 価格: | 800-1000 USD/Tons |
| 標準パッケージ: | 束入りまたは木箱入り。 |
| 配達期間: | 製品に20〜30日かかります |
| 決済方法: | L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム |
| 供給能力: | 年間60,000トン/トン |

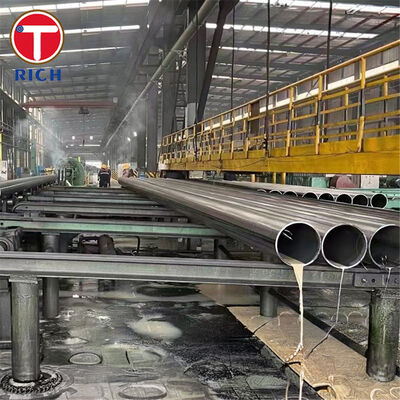

EN 10219 cold formed welded structural hollow sections are load-bearing steel tubes manufactured by cold-forming strip/plate into a closed section and producing a continuous weld (commonly ERW/HF). EN 10219-2 governs tolerances, dimensions, and sectional properties, while steel grades and delivery requirements are defined in EN 10219-1.
Typical grade options (examples): S235JRH, S275J0H, S355J2H (non-alloy structural steels) and S420MH, S460MH (fine-grain, thermomechanically rolled steels).
Product forms: CHS (round), SHS (square), RHS (rectangular), EHS (elliptical)
EN 10219-2 scope (size capability):
Wall thickness: up to 40 mm
Circular OD: up to 2,500 mm
Square: up to 500 × 500 mm
Rectangular: up to 500 × 300 mm
Elliptical: up to 480 × 240 mm
Supply condition: as-welded/cold-formed (per EN 10219 family), optional surface protection (black/oiled/painted/galvanized), cut-to-length available
Typical lengths: 6 m / 12 m, or as required by drawings and packing rules
Dimensional consistency for fabrication: EN 10219-2 defines tolerances and sectional-property calculation rules used in structural design and detailing.
High strength-to-weight ratio: closed hollow sections provide excellent buckling resistance and clean load paths for frames and trusses.
Weldable, production-friendly: suited for automated cutting, drilling, and welding when ordered with the right toughness and certificate level.
We support heat/batch traceability with EN 10204 Type 3.1 inspection documentation when specified, including actual chemical/mechanical results and clear linkage to delivered goods. For EU construction supply chains, documentation and traceability are commonly tied to CE/EN 1090 execution routes; reputable producers explicitly reference 3.1 documentation and structural suitability in their DoP/AVCP workflow.
For structural hollow sections, weld quality is managed through controlled welding parameters plus inspection. Full-length weld NDT is commonly specified by leading producers for EN 10219 products, and additional NDT methods (e.g., radiographic testing of weld seams) are standardized in ISO tube-testing practices. We can align inspection scope (visual, UT/RT where required) with project specs.
EN 10219-2 is specifically written to control dimension and shape tolerances and provides the basis for sectional properties used in structural design. When you build to this tolerance system, fit-up improves (less rework on connection plates, better squareness/straightness targets, more predictable end-prep and assembly).
| Grade | C | Si | Mn | P | S | N | Ni | Mo | V | Nb | Ti |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S235JRH | ≤0.17 | — | ≤1.40 | ≤0.040 | ≤0.040 | ≤0.009 | — | — | — | — | — |
| S275J0H | ≤0.20 | — | ≤1.50 | ≤0.035 | ≤0.035 | ≤0.009 | — | — | — | — | — |
| S355J2H | ≤0.22 | ≤0.55 | ≤1.60 | ≤0.030 | ≤0.030 | — | — | — | — | — | — |
| S420MH | ≤0.16 | ≤0.50 | ≤1.70 | ≤0.035 | ≤0.030 | ≤0.020 | ≤0.30 | ≤0.20 | ≤0.12 | ≤0.05 | ≤0.05 |
| S460MH | ≤0.16 | ≤0.60 | ≤1.70 | ≤0.035 | ≤0.030 | ≤0.025 | ≤0.30 | ≤0.20 | ≤0.12 | ≤0.05 | ≤0.05 |
| Grade | Thickness (mm) | Yield ReH (MPa) | Tensile Rm (MPa) | Elongation A (%) | Impact (J) @ Temp |
|---|---|---|---|---|---|
| S235JRH | ≤16 / 16–40 | 235 / 225 | 360–510 | 26 (to 40) | 27 J @ +20°C |
| S275J0H | ≤16 / 16–40 | 275 / 265 | 410–560 | 23 (to 40) | 27 J @ 0°C |
| S355J2H | ≤16 / 16–40 | 355 / 345 | 470–630 | 22 (to 40) | 27 J @ −20°C |
| S420MH | ≤16 / 16–40 | 420 / 400 | 500–660 | 19 (to 40) | 40 J @ −20°C |
| S460MH | ≤16 / 16–40 | 460 / 440 | 530–720 | 17 (to 40) | 40 J @ −20°C |
EN: EN 10219-1 (technical delivery conditions) + EN 10219-2 (tolerances, dimensions, sectional properties)
ASTM: ASTM A500/A500M (cold-formed welded and seamless carbon steel structural tubing for buildings/bridges)
JIS: JIS G 3466 (carbon steel square/rectangular tubes for civil engineering/architecture structures)
GOST: GOST 30245 (welded closed square/rectangular sections for building steel structures)
GB: GB/T 6728 (cold forming sectional steel for general structure)
Primary field: Building and civil engineering structures.
Typical uses within the field (examples):
Building frames: columns, beams, bracing members, trusses, portal frames
Infrastructure: bridge sub-frames, towers/masts, stations, shelters
Architectural steelwork: façade sub-frames, canopies, handrails/guards, atriums
Industrial buildings: platforms, equipment frames, conveyor and rack structures
A: manufacturer,also can do trading.
A: Generally speaking,it is 10-15 days if the goods are in stock,or it is 30-40 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact with me.
|
|
